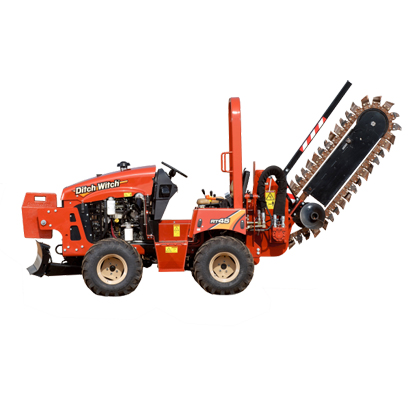

Dimensions
|
|
|
Operation
|
|
|
Height
|
86 in.
|
|
Forward Speed, Max
|
4.7 mph
|
|
Length Transport
|
155 in.
|
|
Reverse Speed
|
2.7 mph
|
|
Width
|
64 in.
|
|
Vehicle Clearance Cycle
|
|
Basic Unit Weight
|
3,240 lbs.
|
|
Front Steer Only
|
28 ft.
|
|
Wheelbase
|
48 in.
|
|
Coordinated Steer
|
20 ft.
|
Spoil Discharge Reach
(min to max)
|
17-20 in.
|
|
Digging Chain Speed, max
(2,600 rpm engine speed)
|
233 rpm
|
|
Tread
|
46 in.
|
|
Operating Weight
|
5,375 lbs.
|
|
Ground Clearance
|
7 in.
|
|
Headshaft Speed, Max
(2,600 rpm engine speed)
|
6.5 gpm
|
|
Power
|
|
|
Hydraulic System @ 2,600 rpm
|
|
Engine
|
Deutz® D 2.9 L4
|
|
Ground Drive Pump Capacity
|
31.5 gpm
|
|
Fuel
|
Diesel
|
|
Ground Drive Pump Relief Pressure
|
3,650 psi
|
|
Cooling Medium
|
Water
|
|
Attachment Drive
|
|
Injection
|
Direct
|
|
Trencher
|
5,000 psi
|
|
Aspiration
|
Natural
|
|
Plow/Saw
|
3,750 psi
|
|
Number of Cylinder
|
4
|
|
Attachment Pump Capacity
|
11.5 gpm
|
|
Displacement
|
177 in 3
|
|
Auxiliary Pump Relief Pressure
|
2,100 psi
|
|
Bore
|
3.6 in.
|
|
Noise Level
|
|
|
Stroke
|
4.3 in.
|
|
Operator
|
96 dba sound pressure ISO 6394
|
|
Gross Power
|
49 hp
|
|
Exterior
|
108 dba sound power per ISO 6393
|
|
Rated Speed
|
2,600 rpm
|
|
Fluid Capacities
|
|
|
Emissions Compliance
|
EPA Tier 4
|
|
Fuel Tank
|
13 gal
|
|
Power Train
|
|
|
Engine Oil
|
6.4 qt
|
|
Ground Drive Transmission
|
Hydrostatic drive infinitely variable from zero to maximum, foot-pedal and hand-lever operated speed/direction control
|
|
Hydraulic System
|
13 gal
|
|
Hydraulic Reservoir
|
9.5 gal
|
|
Coolant
|
3 gal
|
|
Differentials
|
Dana Model 44, limited slip;
Dana Model 60, limited slip;
|
|
Backfill Blade
|
|
|
Blade Width
|
64 in.
|
|
Parking Brake
|
Disc, hand-operated
|
|
Blade Height
|
14 in.
|
|
Service Brake
|
Ground drive speed/direction control brakes machine hydraulically when moved to neutral position
|
|
Lift Height, Above Ground
|
12 in.
|
|
Blade Drop, Below Ground
|
8 in.
|
|
Swing Angle max Left/Right
|
28°
|
|
Attachment Drive Transmission
|
Hydrostatic, lever operated, speed infinitely variable from zero to maximum forward with limited stroke reverse.
|
|
Title Angle Up/Down
|
11°
|
|
Tires/Pressure
|
|
|
26x12-12, 4-ply bar lug
|
1,780 lb @ 20 psi
|
|
Trencher Drive Transmission
|
Hydrostatic
|
|
29 x 12.50-15, 8 ply bar lug
|
2,150 lb @ 30 psi
|
|
Battery
|
|
|
|
|
|
Group
|
26.26R/70
|
|
|
|
|
SAE Reserve Capacity Rating
|
165 min
|
|
|
|
|
Cold Crank Rating @ 0°F (-18°C)
|
850 amps
|
|
|
|
|
Auxiliary Power Outlet
|
12V, 5 amps
|
|
|
|
